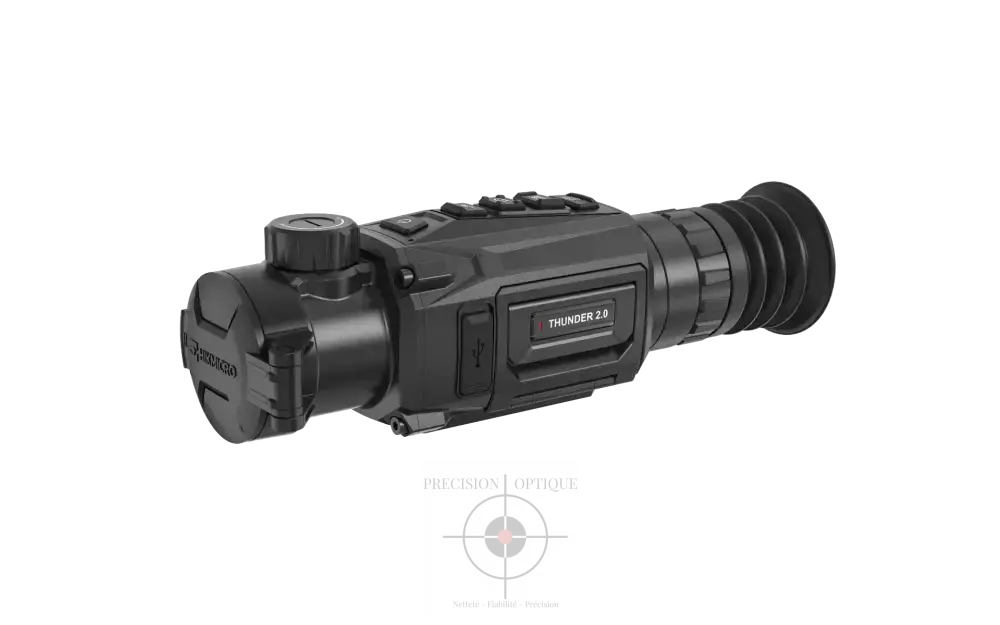

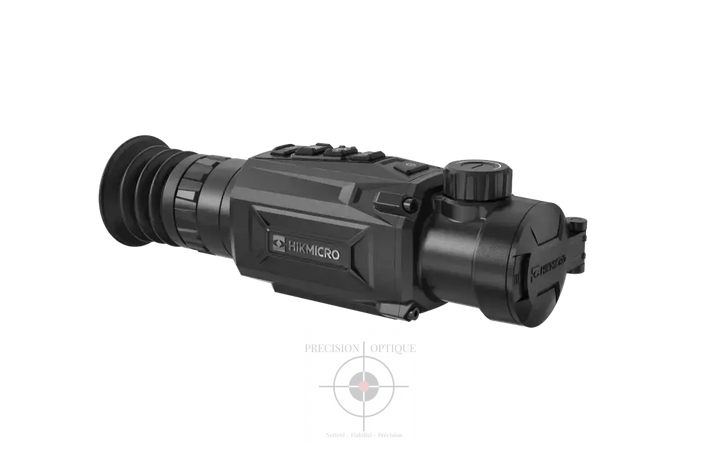

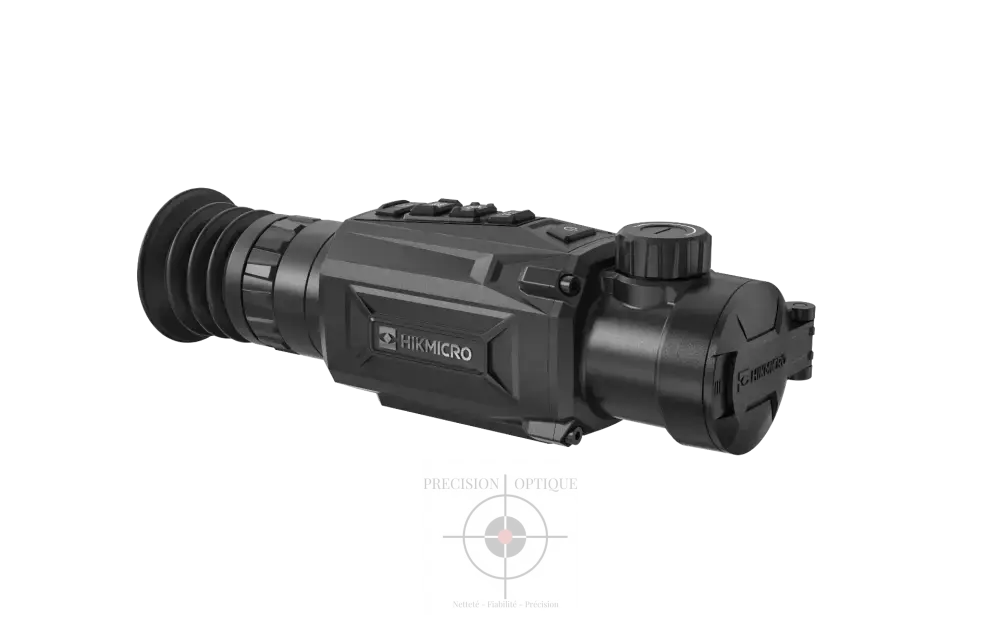

Hikmicro Thunder TH35 Thermal Goggle

The HIKMICRO THUNDER TH35P 2.0 thermal scope is an advanced device designed for applications such as patrolling and hunting. With its high-sensitivity sensor and OLED display, it delivers exceptional performance even in harsh environmental conditions. Here is a detailed summary of its features and specifications:

Main Features

• Thermal Sensor:

  • Resolution: 384 × 288 pixels
  • Pixel Pitch: 12 μm
  • Thermal Sensitivity (NETD): ≤ 20 mK (@25°C, F#=1.0)
  • Frame Rate: 50 Hz
  • Focal length: 35 mm
  • Field of View: 7.53° × 5.65° (H × V)
  • Detection Range: Up to 1800 m
  • Min Focus Distance: 2 m
  • Aperture: F1.0
  • Magnification: 2.14x
  • Digital Zoom: 1x, 2x, 4x, 8x
  • FFC (Flat Field Correction) mode: Auto, manual, external correction

• Screen :

  • Type: OLED
  • Resolution: 1024 × 768 pixels
  • Size: 0.39 inch
  • Tone Setting: Cool, Warm
  • Brightness Adjustment: Yes
  • Diopter: -5D to 5D
  • Eye Relief: 45 mm
  • Exit pupil: 6 mm

• Built-in Features:

  • Audio and Video Recording
  • Reticle
  • PIP (Picture in Picture)
  • Distance measurement
  • Sleep Mode
  • Photo Capture
  • Internal Storage: Built-in EMMC (16GB)
  • Shock Resistance: Up to 1000 g/0.4 ms
  • Color Palettes: Hot Black, Hot White, Hot Red, Fusion

• Autonomy and Power Supply:

  • Battery Type: Replaceable and rechargeable Li-ion battery
  • Operating Time: Up to 6.5 hours (at 25°C, with hotspot off)
  • External Power: Supports via Type-C power supply (5VDC, 2A)

General Specifications

• Dimensions: 221.14 mm × 67.4 mm × 68.04 mm
• Weight: 515 g (without battery)
• Operating Temperature: -30°C to 55°C
• Protection index: IP67

Comes with

• Quick Start Guide
• Anti-dust cloth
• Type-C Cable

Conclusion

The HIKMICRO THUNDER TH35P 2.0 is a rugged, high-performance thermal scope ideal for professionals and amateurs requiring clear, detailed thermal vision. Its high-sensitivity sensor, recording and distance measurement features, and resistance to harsh conditions make it a preferred choice for a variety of applications such as hunting and patrolling.
